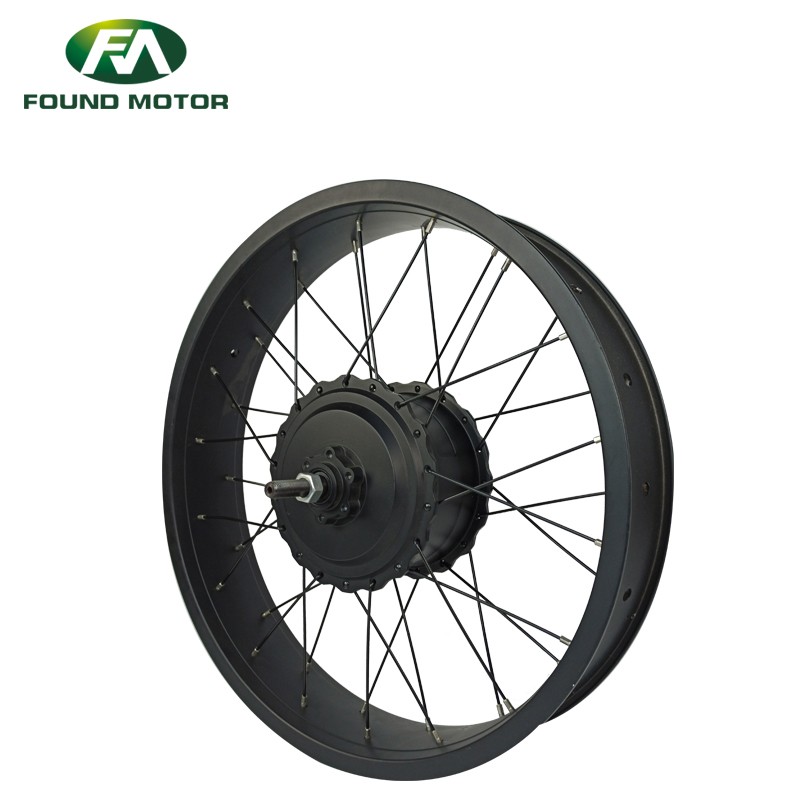

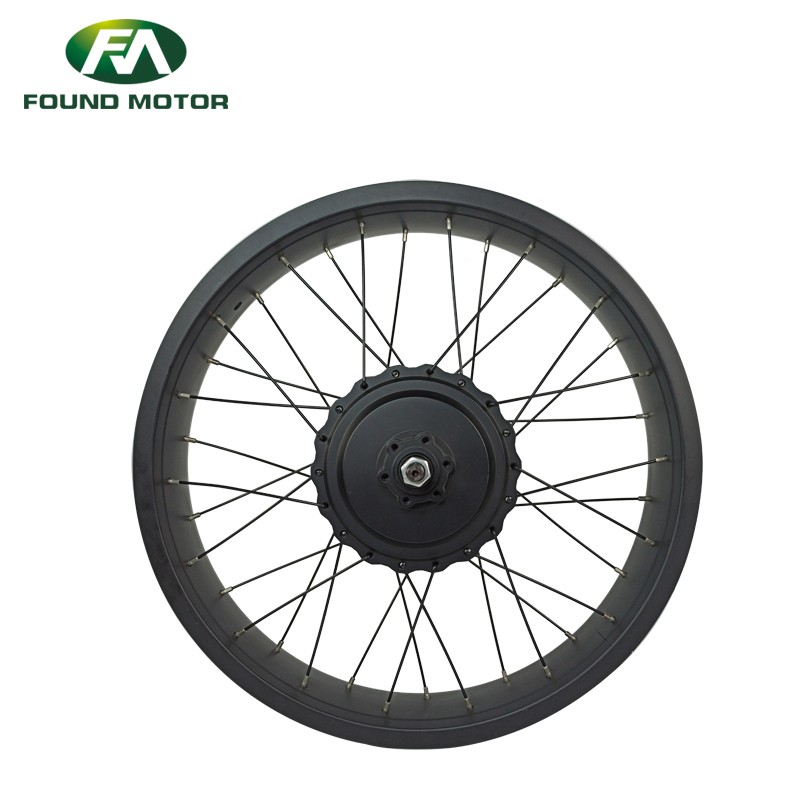

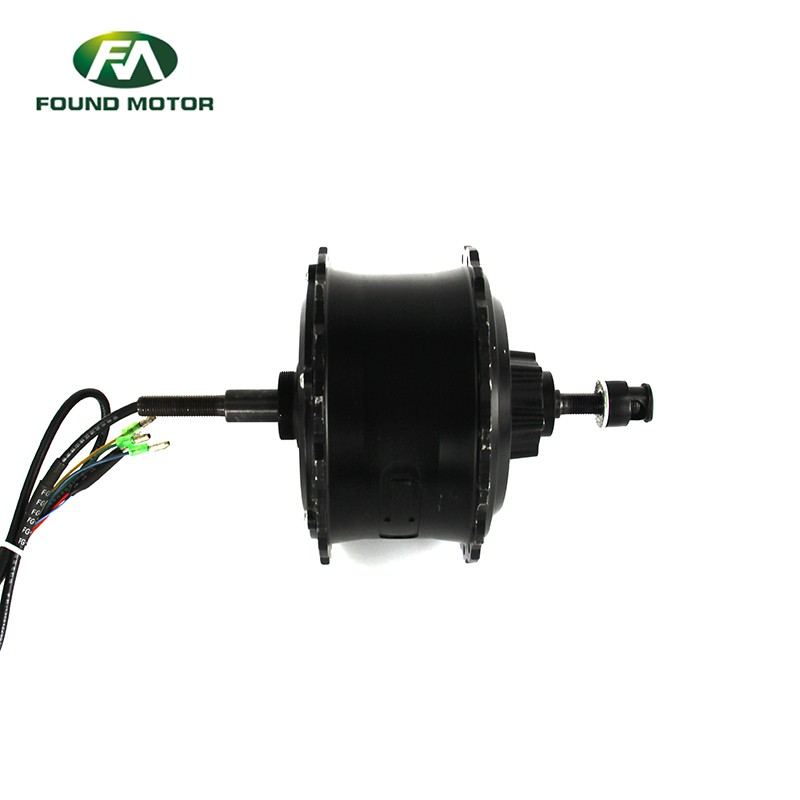

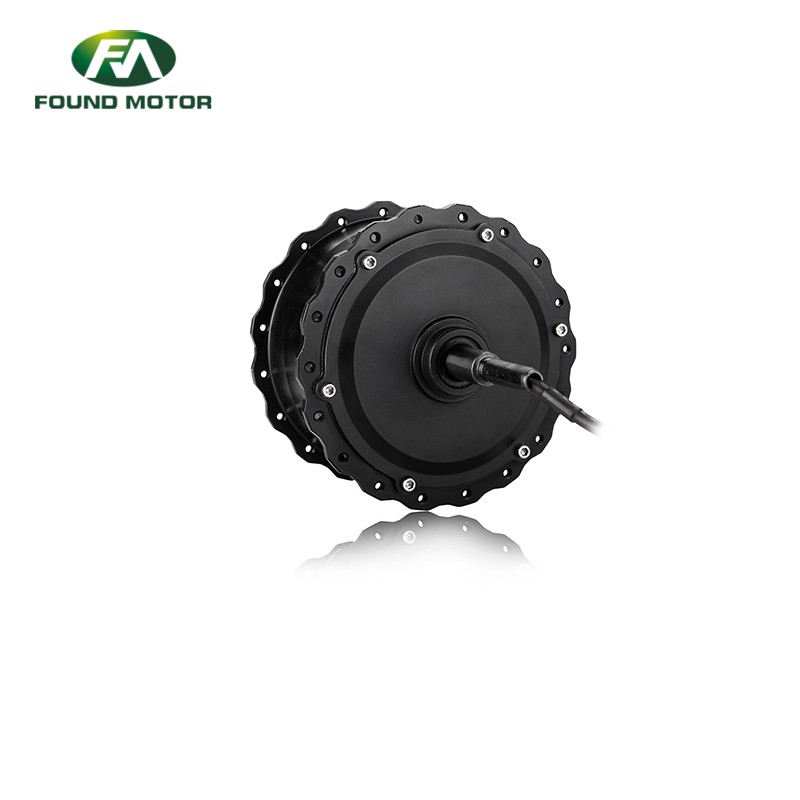

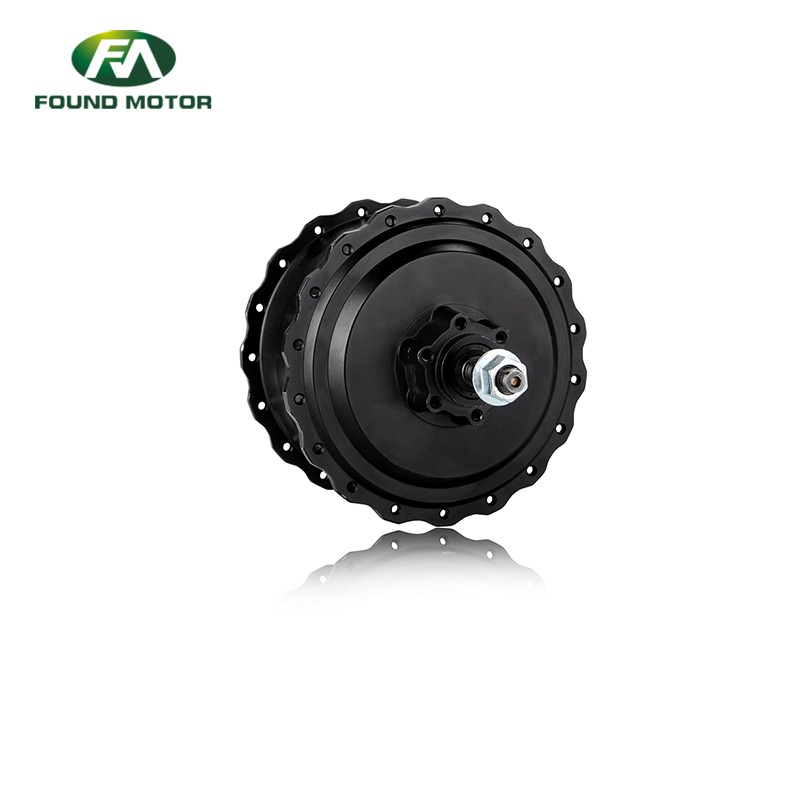

36/48V 500W750W1000W BLDC Freewheel rear drive geared fat bike electric sonw bike brushless high efficiency hub motor FM-01-01-BSBR

36/48V 500W750W1000W BLDC rear drive geared fat bike electric sonw bike brushless high efficiency hub motor

BLDC rear drive geared fat bike electric sonw bike brushless high efficiency hub motor


Model

FM-01-01-BSBR

Rated  Voltage(V)

24/36/48

Rated  Power(W)

250-1000

Wheel  Size

16/20/26

Spoke Specification

12G/13G

Spoke Holes

36

Rated  Speed(km/h)

25

Efficiency()

≥80

Reduction Ratio

1:5

Weight (Kg)

3.85

Open  Size(mm)

150,170,180,190

Drive And Freewheel

Rear drive/6-9S

Cable  Location

Optional

Hall  Sensor

Optional

Inner Speed sensor

Optional

Surface

Black/Silver

Brake Type

V brake/Disc brake

Salt Fog Test(h)

24/96

Noise (db)

<55db

Waterproof Grade

IP54/IP65



Comments

1. Customized LOGO available.



2. Brushless geared motor,Brushless gearless motor optional.



2.1Brushless geared motor

Normal electric bike motor  24V/36V/48V,180W-1000W

Fat bike motor  36V/48V/52V/60V,250W-1200W



2.2Brushless gearless motor

Normal electric bike motor

36V/48V/52V/60V/72V,250W-1500W

Fat bike motor   36V/48V/52V/60V/72V 500W-8000W



3.Normal electric bike motor & electric bicycle motor available

Front drive motor(dropout 100mm)

Rear drive single speed motor(dropout 125mm)

Rear drive 6-9 speed motor(dropout 135mm)

Rear drive 6-11 speed cassette motor(dropout 142mm)



4.Fat bike motor

Front drive motor(dropout 100mm)

Rear drive 6-9 speed motor(dropout 170-190mm)

Rear drive 6-11 speed cassette motor(dropout 170-190mm)

  PS:Rear drive fat bike motor with dropout 150-155mm can be Customized



5.Spoke hub motor can be assemblied with double layers/wall aluminum rim,16-28*1.75-2.125,fat bike motor,16*4.0,20*4.0,26*4.0.



6.Spoke hub motor normally with 36 holes,24 holes,72holes can be customized.

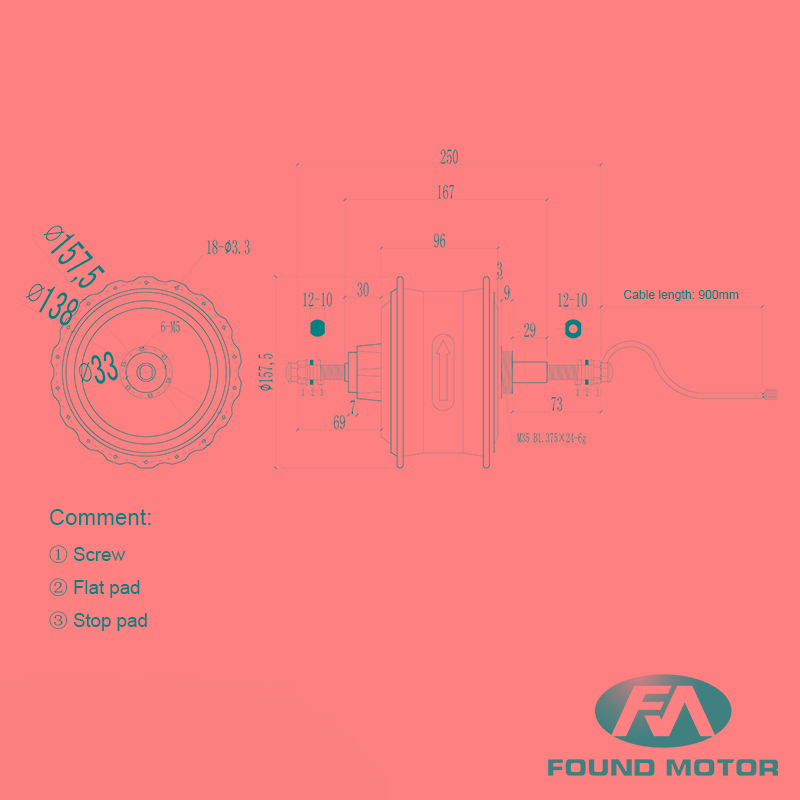

7.Our motor with Dacro screws/nuts, gaskets(flat pad,stop pad),black rubber sleeve



8.Our motor with JULET waterproof cable.



9.All motors have matching electric control systems,Throttle with battery indicate,Throttle with digital display,LED & LCD control systems optional.
